Core LispBM
Displayref
# LispBM Display Library

The display extensions contains a graphics library designed for platforms for with very limited memory resources. The drawing routines in the library operate on rectangular images (arrays) of pixels , called an image buffer.

The values stored in image buffers represents colors via an encoding determined by the image buffer pixel format. A pixel buffer has one of the following formats:

Note that the RAM requirement of a 100x100 image is;

So on an embedded platform you most likely not be able to be working with rgb565, rgb888 other than in very limited areas.

At the low-level end of things you will want to display graphics onto an display. The interface towards the low-level end needs to be implemented for the particular hardware platform and display. For examples of this see vesc_express. The LBM linux REPL has SDL and png backends for the display library.

the display library is specifically designed to allow for using many colors simultaneously on screen, without needing to use full screen high-color buffers. This is done by delaying the choice of color mapping in the indexed2, indexed4 and indexed16 images until they are presented on screen.

images are rendered onto a display using the function disp-render. disp-render takes an image, a position (x,y) where to draw the image, and a colormapping that can be expressed as a list of colors. for example:

Reference

disp-render

An image is drawn onto a display using disp-render. The form of a disp-render expression is (disp-render image x y color-list).

Arg
image An image buffer for example created using img-buffer.
x y position of top left corner x,y.
color-list List of Color value, hex or color values.
Example Image Result
(disp-render llama-bin 10 10 '(0x000000 0xFFFFFF))

t

(disp-render llama-bin 20 20 '(0x000000 0xFF0000))

t

(disp-render llama-bin 30 30 '(0x000000 0x00FF00))

t

(disp-render llama-bin 30 30 '(0x000000 0x0000FF))

t
Example Image Result
(disp-render img-100-100 0 0 '(0x000000 0xFFFFFF))

t

(disp-render img-100-100 0 100 '(0x000000 0xFF0000))

t

(disp-render img-100-100 100 0 '(0x000000 0x00FF00))

t

(disp-render img-100-100 100 100 '(0x000000 0x0000FF))

t

(disp-render img-100-100 200 0 '(0x000000 0x00FFFF))

t

(disp-render img-100-100 200 100 '(0x000000 0xFF00FF))

t

disp-render-jpg

There is a renderer specifically for JPG images. If one is considering to use JPG for images, the images are most likely larger than what is easy to handle with image buffers. The disp-render-jpg decompresses a JPG in small chunks and outputs directly to the display. The form of a disp-render-jpg expression is (disp-render-jpg jpg-data x y).

Arg
jpg-data Imported or otherwise loaded jpg data.
x y position of top left corner x,y.
Example Image Result
(disp-render-jpg my-jpg 0 0)

t

disp-clear

Use disp-clear to clear the display . The form of a disp-clear expression is (disp-clear opt-color). opt-color is an optional color value.

Example Image Result
(disp-clear)

t

(disp-clear 0xFF8822)

t

(disp-clear 0x000000)

t

disp-reset

Use disp-reset to reset the display . What it means to reset a display is display-backend dependend on an display connected over SPI to an MCU, it may mean powercycling and running the initialization sequence of commands. The form of a disp-reset expression is (disp-reset).

Example Image Result
(disp-reset)

t

img-buffer

Allocate an image buffer from lbm memory or from a compactable region. The form of an img-buffer expression is (img-buffer opt-dm format width height).

Example Result
(define my-img (img-buffer 'indexed2 320 200))

[1 64 0 200 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Example Result
(define my-dm (dm-create 10000))
(define my-img (img-buffer my-dm 'indexed2 320 200))

[1 64 0 200 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

img-buffer?

Checks if the argument is likely to be an image buffer.

Example Result
(img-buffer? llama-bin)

t

(img-buffer? 'apa)

nil

img-blit

 (img-blit dest src x y transparent ..option)

Copy pixels from src to dest. x and y are coordinates in dest. Pixels colored transparent in src will be skipped transparent can be set to -1 to indicate no transparency

Options
'(rotate x y deg) Rotate deg degrees around x y
'(scale s) Scale by s
'(tile) Tile to fill dest
'(clip x y w h) Clip output in destination coords
Example Image Result
(img-blit my-img llama-bin 10 10 -1)

t

(img-blit my-img llama-bin 10 10 -1 '(rotate 128 128 45))

t

(img-blit my-img llama-bin 10 10 -1 '(scale 0.500000f32))

t

(img-blit my-img llama-bin 10 10 -1 '(tile) '(scale 0.200000f32))

t

(img-blit my-img llama-bin 10 10 -1
    '(tile)
    '(scale 0.2)
    '(rotate 10 10 45))

t

(img-blit my-img llama-bin 10 10 -1
    '(tile)
    '(scale 0.2)
    '(rotate 10 10 45)
    '(clip 50 50 250 150))

t

img-dims

img-dims returns the width and height of an image. The form of an img-dimsexpression is(img-dims image)`.

Example Image Result
(img-dims my-img)

(320 200)

img-arc

Draw an arc into an image. The form of an img-arc expression is (img-arc image cx cy r ang-s ang-e color ..option).

Arg
image An image buffer for example created using img-buffer.
cx cy Center point x,y.
r Radius.
ang-s ang-e From angle ang-s to ang-e in degrees (float).
color Color value, range determined by image buffer color depth.

Option
dotted Dotted or dashed, two numeric arguments specifying length of dash and distance between dashes.
filled Filled, no arguments.
thickness Thickness of line, one argument specifying thickness in pixels.
rounded Rounded edges, no argument.
resolution One argument, Number of points that are connected into an arc using line segments.
Example Image Result
(img-arc my-img 100 100 50 160 100 1)

t

(img-arc my-img 100 100 50 160 100 1 '(dotted 15 15))

t

(img-arc my-img 100 100 50 160 100 1 '(filled))

t

(img-arc my-img 100 100 50 160 100 1 '(thickness 10))

t

(img-arc my-img 100 100 50 160 100 1 '(rounded))

t

(img-arc my-img 100 100 50 160 100 1 '(dotted 15 15) '(resolution 3))

t

(img-arc my-img 100 100 50 160 100 1 '(thickness 10) '(rounded))

t

img-circle

Draw a circle into an image. The form of an img-circle expression is (img-circle image cx cy r color ..option).

Arg
image An image buffer for example created using img-buffer.
cx cy Center point x,y.
r Radius.
color Color value, range determined by image buffer color depth.

Option
dotted Dotted or dashed, two numeric arguments specifying length of dash and distance between dashes.
filled Filled, no arguments.
thickness Thickness of line, one argument specifying thickness in pixels.
resolution One argument, Number of points that are connected into an arc using line segments.
Example Image Result
(img-circle my-img 100 100 80 1)

t

(img-circle my-img 100 100 80 1 '(thickness 5))

t

(img-circle my-img 100 100 80 1 '(dotted 14 14))

t

(img-circle my-img 100 100 80 1 '(filled))

t

(img-circle my-img 100 100 80 1 '(dotted 14 14) '(resolution 6))

t

img-circle-sector

Draw a circle sector into an image. The form of an img-circle-sector expression is (img-circle-sector image cx cy r ang-s ang-e color ..option).

Arg
image An image buffer for example created using img-buffer.
cx cy Center point x,y.
r Radius.
ang-s ang-e From angle ang-s to ang-e in degrees (float).
color Color value, range determined by image buffer color depth.

Option
dotted Dotted or dashed, two numeric arguments specifying length of dash and distance between dashes.
filled Filled, no arguments.
thickness Thickness of line, one argument specifying thickness in pixels.
Example Image Result
(img-circle-sector my-img 220 40 40 90 200 1)

t

(img-circle-sector my-img 220 40 40 90 200 1 '(thickness 3))

t

(img-circle-sector my-img 220 40 40 90 200 1 '(dotted 1 4))

t

(img-circle-sector my-img 220 40 40 90 200 1 '(filled))

t

img-circle-segment

Draw a circle segment into an image. The form of an img-circle-segment expression is (img-circle-segment image cx cy r ang-s ang-e color ..option).

Arg
image An image buffer for example created using img-buffer.
cx cy Center point x,y.
r Radius.
ang-s ang-e From angle ang-s to ang-e in degrees (float).
color Color value, range determined by image buffer color depth.

Option
dotted Dotted or dashed, two numeric arguments specifying length of dash and distance between dashes.
filled Filled, no arguments.
thickness Thickness of line, one argument specifying thickness in pixels.
Example Image Result
(img-circle-segment my-img 100 100 80 0 100 1)

t

(img-circle-segment my-img 100 100 80 0 100 1 '(filled))

t

(img-circle-segment my-img 100 100 80 0 100 1 '(thickness 5))

t

(img-circle-segment my-img 100 100 80 0 100 1 '(dotted 1 4))

t

img-clear

Example Image Result
(img-clear my-img)

t

(img-clear my-img 1)

t

(img-clear my-img 0)

t

img-color

img-color is used to create more complex color objects for use together with disp-render. Regular colors can optionally include alpha from 0 (transparent) to 255 (opaque), with 255 as the default.

Example Result
(img-color 'regular 0xAABB11)

[0 67 79 76 17 187 170 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 255 0 0 0]

(img-color 'regular 0xAABB11 128)

[0 67 79 76 17 187 170 0 128 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 128 0 0 0]

(img-color 'gradient_x color1 color2 10 0 'repeat)

[0 67 79 76 0 0 255 0 255 0 0 0 10 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 255 0 0 0]

(img-color 'gradient_x_pre color1 color2)

[0 67 79 76 0 0 255 0 255 0 0 0 0 0 0 0 0 0 0 0 3 0 0 0 240 61 188 236 255 0 0 0]

Alpha blends colors in RGB buffers. For indexed buffers, alpha 0 skips the pixel and any non-zero value writes the color index.

Example Image Result
(define fptr (f-open "images/lama2.bin" "r"))
(define pic (load-file fptr))
(f-close fptr)
(define c (img-color 'gradient_x color1 color2 100 0 'repeat))
(define img (img-buffer 'indexed2 320 200))
(img-blit img pic 10 10 -1 '(rotate 128 128 45))
(disp-render img 100 0 (list (img-color 'regular 0) c))

t
Example Image Result
(define fptr (f-open "images/lama2.bin" "r"))
(define pic (load-file fptr))
(f-close fptr)
(define c (img-color 'gradient_y color1 color2 100 0 'mirrored))
(define img (img-buffer 'indexed2 320 200))
(img-blit img pic 10 10 -1 '(rotate 128 128 45))
(disp-render img 100 0 (list (img-color 'regular 0) c))

t

img-color-set

With img-color-setyou can set properties of a color. The form of a img-color-set expression is (img-color-set color prop value) The alpha property is available for every color type and is clamped to 0..255.

Arg
color Color value creted with img-color.
property Symbol denoting property to change.
value New value to set property to.
img-color-set regular gradient pre
color0 ✓ ✓ ✗
color1 ✗ ✓ ✗
width ✗ ✓ ✗
offset ✗ ✓ ✓
repeat-type ✗ ✓ ✓
Example Result
(img-color-set my-color 'repeat-type 'mirrored)

t

(img-color-set my-color 'color-0 16711935)

t

(img-color-set my-color 'color-1 65280)

t

(img-color-set my-color 'width 10)

t

(img-color-set my-color 'offset 1)

t

(img-color-set my-color 'alpha 128)

t

img-color-get

With img-color-get you can access properties of a color. The form of an img-color-get expression is (img-color-get color prop) Use the alpha property to read the current opacity.

Arg
color Color value creted with img-color.
property Symbol denoting property to access.
img-color-get regular gradient pre
color0 ✓ ✓ ✓
color1 ✗ ✓ ✓
width ✗ ✓ ✓
offset ✗ ✓ ✓
repeat-type ✗ ✓ ✓
Example Result
(img-color-get my-color 'repeat-type)

mirrored

(img-color-get my-color 'color-0)

16711935u32

(img-color-get my-color 'color-1)

65280u32

(img-color-get my-color 'width)

10i32

(img-color-get my-color 'offset)

1i32

(img-color-get my-color 'alpha)

128u32

img-color-setpre

Update a value in a precalculated gradient color. The form of an img-color-setpre expression is (img-color-setpre color pos color-val).

Arg
color Color value creted with img-color.
pos Position in the precomputed colormap to update.
color-val Color value to write into the position.
Example Result
(img-color-setpre my-color-pre 10 16777215)

t

(img-color-setpre my-color-pre 11 0)

t
Example Image Result
(define fptr (f-open "images/lama2.bin" "r"))
(define pic (load-file fptr))
(f-close fptr)
(define c (img-color 'gradient_x_pre color1 color2 100 0 'repeat))
(loopfor i 0 (< i 512) (+ i 2)
         (progn
             (img-color-setpre c i 16777215)
             (img-color-setpre c (+ i 1) 0)))
(define img (img-buffer 'indexed2 320 200))
(img-blit img pic 10 10 -1 '(rotate 128 128 45))
(disp-render img 100 0 (list (img-color 'regular 0) c))

t
Example Image Result
(define fptr (f-open "images/lama2.bin" "r"))
(define pic (load-file fptr))
(f-close fptr)
(define c (img-color 'gradient_y_pre color1 color2 200 0 'repeat))
(loopfor i 0 (< i 200) (+ i 10)
         (progn
             (var band-color (if (= (mod (/ i 10) 2) 0) color1 color2))
             (loopfor j 0 (< j 10) (+ j 1)
                      (progn
                          (img-color-setpre c (+ i j) band-color)))))
(define img (img-buffer 'indexed2 320 200))
(img-blit img pic 10 10 -1 '(rotate 128 128 45))
(disp-render img 100 0 (list (img-color 'regular 0) c))

t

img-color-getpre

Get a value from a precalculated gradient color. The form of an img-color-getpre expression is (img-color-getpre color pos).

Arg
color Color value creted with img-color.
pos Position in the precomputed colormap to update.
Example Result
(img-color-getpre my-color-pre 10)

16777215u32

(img-color-getpre my-color-pre 11)

0u32

(img-color-getpre my-color-pre 12)

16121865u32

img-line

Draw a line into an image. The form of an img-line expression is (img-line image x1 y1 x2 y2 color ..option).

Arg
image An image buffer for example created using img-buffer.
x1 y1 Start point x,y.
x2 y2 End point x,y.
color Color value, range determined by image buffer color depth.

Option
dotted Dotted or dashed, two numeric arguments specifying length of dash and distance between dashes.
filled Filled, no arguments.
thickness Thickness of line, one argument specifying thickness in pixels.
Example Image Result
(img-line my-img 0 0 320 200 1)

t

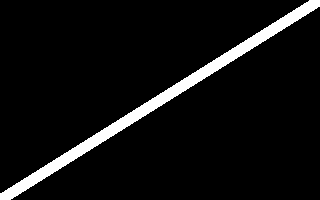

(img-line my-img 0 200 320 0 1 '(thickness 5))

t

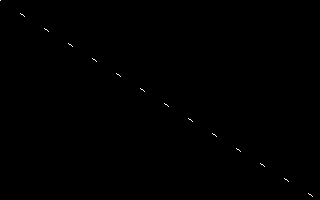

(img-line my-img 0 0 320 200 1 '(dotted 4 20))

t

img-rectangle

Draw a rectangle into an image. The form of an img-rectangle expression is (img-rectangle image x1 y1 w h color ..option).

Arg
image An image buffer for example created using img-buffer.
x1 y1 Top left corner x,y.
w h Width and height.
color Color value, range determined by image buffer color depth.

Option
dotted Dotted or dashed, two numeric arguments specifying length of dash and distance between dashes.
filled Filled, no arguments.
thickness Thickness of line, one argument specifying thickness in pixels.
rounded Rounded edges, one argument rounded corner angle.
Example Image Result

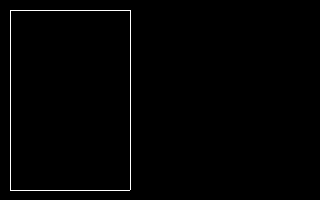

(img-rectangle my-img 10 10 120 180 1)

t

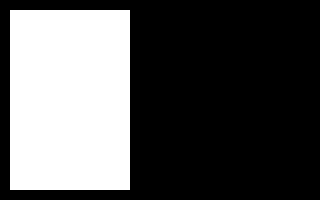

(img-rectangle my-img 10 10 120 180 1 '(filled))

t

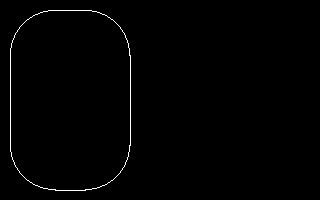

(img-rectangle my-img 10 10 120 180 1 '(rounded 45))

t

img-setpix

Draw a pixel into an image. The form of an img-setpix expression is (img-setpix image x y color).

Arg
image An image buffer for example created using img-buffer.
x y Position x,y.
color Color value, range determined by image buffer color depth.
Example Image Result

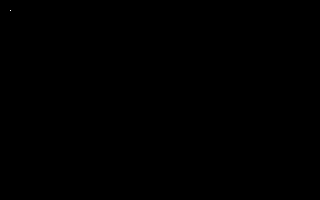

(img-setpix my-img 10 10 1)

t

img-getpix

Get a pixel value from an image. The form of an img-getpix expression is (img-getpix image x y).

Arg
image An image buffer for example created using img-buffer.
x y Position x,y.
Example Image Result
(img-getpix my-img 10 10)

0u32

img-text

Draw text into an image. The form of an img-text expression is (img-text image x1 y1 fg bg font).

Arg
image An image buffer for example created using img-buffer.
x1 y1 Position x,y.
fg bg Foreground and Background color.
font font to use. This should be a bin type font as created by for example VESC Tool. The font file can be imported or loaded depending on platform
Example Image Result

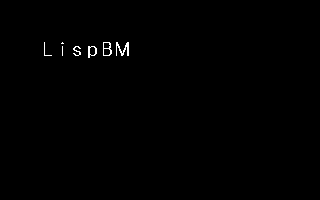

(img-text my-img 40 40 1 0 font "LispBM")

t

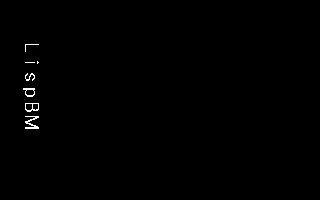

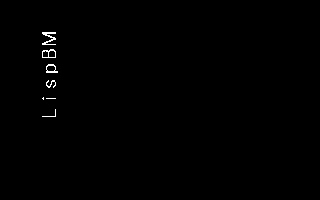

(img-text my-img 40 120 1 0 font "LispBM" 'up)

t

(img-text my-img 40 40 1 0 font "LispBM" 'down)

t

img-triangle

Draw a triangle into an image. The form of an img-triangle expression is (img-triangle image x1 y1 x2 y2 x3 y3 color ..option).

Arg
image An image buffer for example created using img-buffer.
x1 y1 Position first point x,y.
x2 y2 Position second point x,y.
x3 y3 Position third point x,y.
color Color value, range determined by image buffer color depth.

Option
dotted Dotted or dashed, two numeric arguments specifying length of dash and distance between dashes.
filled Filled, no arguments.
thickness Thickness of line, one argument specifying thickness in pixels.
Example Image Result
(img-triangle my-img 30 60 160 120 10 180 1)

t

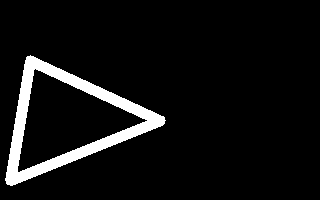

(img-triangle my-img 30 60 160 120 10 180 1 '(thickness 5))

t

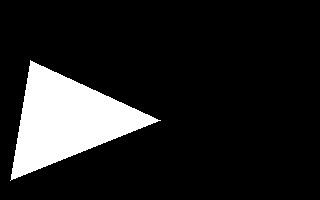

(img-triangle my-img 30 60 160 120 10 180 1 '(filled))

t

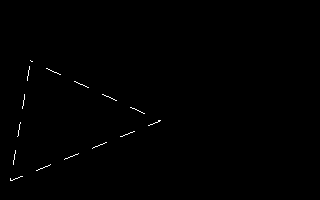

(img-triangle my-img 30 60 160 120 10 180 1 '(dotted 14 14))

t

Examples

These examples are leaving out the details on how to setup and initialize any particular display you may have connected to your embedded system. For information on how to initialize a display on a VESC EXPRESS platform see vesc_express display documentation.

Example: Sierpinski triangle

Example Image Result
(define w 320)
(define h 200)
(define corners (list (cons 10 (- h 10)) (cons (- w 10) (- h 10)) (cons (/ w 2) 10)))
(define s-img (img-buffer 'indexed2 w h))
(defun point (p)
  (img-setpix s-img (car p) (cdr p) 1))
(defun mid-point (p1 p2)
  (progn
      (let ((x (/ (+ (car p1) (car p2)) 2))
            (y (/ (+ (cdr p1) (cdr p2)) 2)))
           (cons x y))))
(defun sierp (n corners p)
  (if (= n 0) nil (let ((i (mod (rand) 3))
                        (target (ix corners i))
                        (mid (mid-point p target)))
                       (progn
                           (point mid)
                           (sierp (- n 1) corners mid)))))

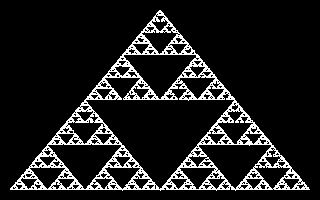

(sierp 25000 corners (car corners))
(disp-render s-img 0 0 '(0 16777215))

t

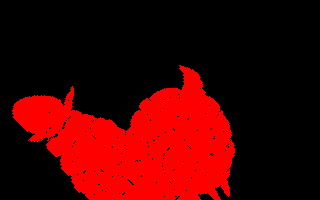

Example: rotated llama

Example Image Result
(import "images/lama2.bin" 'pic)
(define img (img-buffer 'indexed2 320 200))
(img-blit img pic 10 10 -1 '(rotate 128 128 45))
(disp-render img 0 0 '(0 16711680))

t

Note that import is a feature of the VESC integration of LispBM and not really a part of core LispBM. The LispBM REPL does not have an import feature currently.

In the "Desktop" LispBM REPL the rotated llama examples looks as follows.

Example Image Result
(define pic (load-file (f-open "images/lama2.bin" "r")))
(define img (img-buffer 'indexed2 320 200))
(img-blit img pic 10 10 -1 '(rotate 128 128 45))
(disp-render img 100 0 '(0 16711680))

t

(disp-clear)
(define pic (load-file (f-open "images/lama2.bin" "r")))
(define img128x128 (img-buffer 'indexed2 128 128))

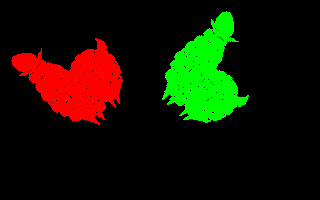

(img-blit img128x128 pic 0 0 -1 '(scale 0.500000f32) '(rotate 128 128 45))
(disp-render img128x128 10 10 '(0 16711680))
(img-clear img128x128)
(img-blit img128x128 pic 0 0 -1 '(scale 0.500000f32) '(rotate 128 128 -45))
(disp-render img128x128 148 10 '(0 65280))

t
Example Animation
(define pic (load-file (f-open "images/lama2.bin" "r")))
(define img (img-buffer 'indexed2 128 128))
(define m (/ 360.000000f32 100.000000f32))
(disp-clear)
(loopfor i 0 (< i 100) (+ i 1)
         (progn
             (var rot (list 'rotate 128 128 (* i m)))
             (img-blit img pic 0 0 -1 '(scale 0.500000f32) rot)
             (disp-render img 10 10 '(0 16711680))))

Example: Overlapping shapes with alpha

Colors with an alpha value blend with the image buffer contents instead of overwriting them. Only has an effect in RGB buffers.

Example Image Result
(img-clear img-rgb888 1052696)
(define alpha-red (img-color 'regular 14696496 160))
(define alpha-blue (img-color 'regular 3178720 160))
(img-circle img-rgb888 70 75 50 alpha-red '(filled))
(img-circle img-rgb888 120 75 50 alpha-blue '(filled))
(disp-render img-rgb888 0 0)

t
Example Image Result
(img-clear img-rgb888 1052696)
(define alpha-red (img-color 'regular 14696496 160))
(define alpha-green (img-color 'regular 3194976 160))
(define alpha-blue (img-color 'regular 3178720 160))
(img-triangle img-rgb888 30 15 150 15 30 135 alpha-red '(filled))
(img-triangle img-rgb888 55 40 175 40 55 160 alpha-green '(filled))
(img-triangle img-rgb888 80 65 200 65 80 185 alpha-blue '(filled))
(disp-render img-rgb888 0 0)

t

This document was generated by LispBM version 0.38.0
